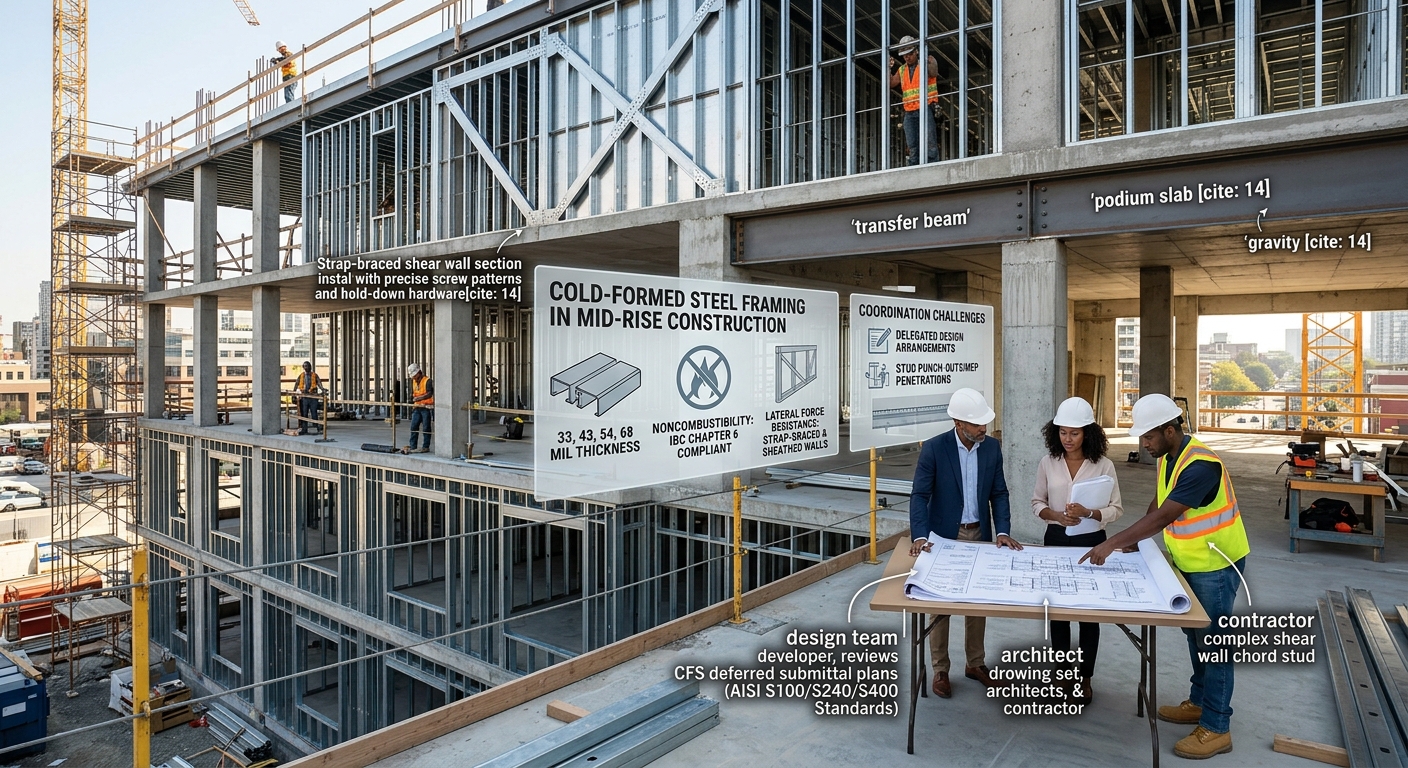

Cold-Formed Steel Framing in Mid-Rise Construction: When Developers Should Specify It

A design team is midway through schematic design on a five-story residential building. The architect prefers wood framing for cost, the developer is concerned about combustibility and long-term movement, and the contractor asks whether light-gauge steel could keep the schedule intact. Each position is reasonable. None of them can be settled without understanding what cold-formed steel (CFS) framing actually offers and what it demands from the design team.

This article explains where CFS framing fits in mid-rise and mixed-use construction, which standards govern its design, how lateral forces are resisted, and which coordination issues tend to cause problems on site. It is written for developers, architects, and contractors who need to make a framing decision early, before the structural system is locked in.

At JMVC Consulting Structural Engineers, framing material is treated as a project-level decision tied to code classification, schedule, and risk, not as a default carried over from the last job. The notes below reflect that approach.

Foundation Cracking and Differential Settlement

Foundation problems remain the single most reported residential structural defect in the United States. The IRC Section R401.4 requires that the supporting soil be evaluated where conditions suggest expansive soils, compressible soils, or shifting soils. In practice, footings are still routinely placed on fill without proper compaction testing, or on expansive clays without geotechnical reinforcement recommendations.

Differential settlement, where one portion of the foundation moves more than another, produces diagonal cracks at door corners, separation between walls and ceilings, and floor slopes that exceed serviceability limits. The fix is not cosmetic. It typically requires underpinning, piers, or partial reconstruction. Prevention is straightforward: obtain a geotechnical report on questionable soils, follow IRC Table R403.1 for minimum footing widths, and reinforce footings to ACI 318 standards where soil conditions demand it.

What Cold-Formed Steel Framing Is

Cold-formed steel members are shaped at room temperature from galvanized sheet steel into C-shaped studs, U-shaped tracks, joists, and related profiles. Thickness is commonly specified in mils (thousandths of an inch), with standard designations of 33, 43, 54, 68, and 97 mil. Common yield strengths are 33 ksi and 50 ksi.

Because the sections are thin, they behave differently from hot-rolled steel. Local buckling, distortional buckling, and web crippling often control the design, not simple yielding. AISI S100, the North American Specification for the Design of Cold-Formed Steel Structural Members, provides the design methods, including the effective width approach and the Direct Strength Method. AISI S240 covers structural framing requirements, and AISI S400 addresses seismic design provisions. The IBC points to these standards in Section 2211.

The practical consequence is that CFS design is a connection-driven, stability-driven discipline. Screw patterns, bridging, bracing, and stud-to-track details carry as much weight as the member size itself.

Where CFS Framing Fits in Mid-Rise Projects

The strongest argument for CFS is noncombustibility. IBC Chapter 6 permits noncombustible framing in Type I and Type II construction, subject to the fire-resistance ratings in Table 601. Where a project is classified in these types, or where an owner wants a noncombustible exterior and interior wall system, CFS is often a natural fit for load-bearing walls and non-load-bearing partitions alike.

Dimensional stability is the second argument. Steel does not shrink, swell with moisture, or creep the way wood does. On multi-story buildings this reduces cumulative differential movement, which matters for exterior cladding, elevator shafts, and finishes.

The trade-offs should be stated plainly. Steel conducts heat, so energy codes such as the IECC in the United States and Approved Document L in the UK require continuous insulation or other thermal break strategies. Galvanized coatings must suit the environment, which is a real concern in coastal Florida and similar exposures. Field modification is also less forgiving than with wood, so coordination must be complete before fabrication.

In the UK, light steel framing is designed to BS EN 1993-1-3 with Approved Document A governing structural performance.

How Lateral Loads Are Resisted

CFS buildings resist wind and seismic forces through shear walls and braced frames, with floor and roof diaphragms delivering load to them. The two most common approaches are strap-braced walls and walls sheathed with steel sheet or wood structural panels. ASCE 7 lists the permitted seismic force-resisting systems, their response modification coefficients, and height limits in Table 12.2-1, and AISI S400 supplies the nominal shear values and detailing rules for the wall types it covers.

Several details determine whether these walls perform as assumed.

Hold-down and anchorage design. Overturning forces concentrate at wall ends, so chord studs, hold-downs, and anchor bolts must be sized for the full tension and compression demand, and the load path must continue through every level to the foundation.

Fastener schedules. Sheathing fastener spacing, screw size, and edge distance affect capacity directly. A field substitution that looks minor can reduce shear strength significantly.

Deflection and drift. IBC Table 1604.3 and ASCE 7 drift limits must be checked, along with finish manufacturer tolerances for exterior walls.

Vertical movement. Floor framing deflects under load, so non-bearing walls and some bearing walls use deflection track or slip connections at the head. These details must be shown on the drawings, not left to the installer.

Coordination Issues That Cause Problems

The most frequent source of trouble is the delegated design arrangement. On many projects the engineer of record sets the design criteria and the specialty CFS engineer designs the framing as a deferred submittal under IBC Section 107.3.4.1. This works when responsibilities are written down. It fails when the engineer of record assumes the specialty engineer will check the supporting structure, and the specialty engineer assumes the opposite. The gravity and lateral reactions at transfer levels, podium slabs, and foundations must be reviewed by the engineer of record.

Other recurring issues include:

• Stud punch-outs and MEP penetrations that exceed the manufacturer’s limits or are cut in the field without engineering review.
• Missing bridging or bracing that leaves studs vulnerable to rotation or lateral-torsional behavior.
• Fire-rated assemblies that rely on gypsum board layers, so changes to the framing or the board schedule can invalidate the tested assembly.
• Late changes to window or door openings that interrupt shear walls or collector elements.

Special inspection and testing requirements under IBC Chapter 17 depend on the system, the seismic design category, and local amendments, so the statement of special inspections should be confirmed with the building official early.

Conclusion

Cold-formed steel framing is a strong option for mid-rise and mixed-use buildings where noncombustible construction, dimensional stability, or schedule certainty is a priority. It is not automatically the better choice. Its advantages come with thermal, corrosion, and coordination requirements that need to be addressed from schematic design forward, with a clear division of responsibility between the engineer of record and any specialty engineer.

If your team is weighing framing systems for an upcoming project, JMVC Consulting Structural Engineers is available to discuss structural considerations before the design is fixed. A short conversation at the start of design often avoids significant revisions later.
