What Is a Transfer Beam and When Does Your Project Need One?

Walk into a modern mixed-use building and you will often find wide open retail space at the ground floor with several stories of apartments stacked above. The columns and walls supporting those upper floors do not continue down through the storefront. Something has to catch them. That something is a transfer beam, one of the hardest working and least understood members in structural engineering.

Homeowners meet the same concept on a smaller scale. Remove a bearing wall to open up a kitchen, add a second story over a garage, or design a home with a great room below bedrooms, and the loads from above must be collected and redirected. This article explains what a transfer beam actually does, the situations that require one, how engineers design them under the governing codes, and why they deserve more respect than a typical floor beam. Whether you are a homeowner planning a remodel or a developer studying a podium project, understanding transfer beams will help you plan realistic budgets and schedules.

What a Transfer Beam Actually Does

Every structure needs a continuous load path: a complete chain of members that carries every load from the roof down to the foundation, as required by IBC Section 1604.4. In an ideal building, columns and bearing walls stack directly on top of one another so gravity loads flow straight down. A transfer beam exists because the architecture interrupts that stack.

When a column or bearing wall from an upper level cannot continue downward, the transfer beam picks up that concentrated load at midspan and carries it horizontally to supports on either side. This is fundamentally different from a typical floor beam that carries distributed loads of a few hundred pounds per foot. A transfer beam may receive a single point load of 30 kips in a residence or several hundred kips in a podium building, applied at the worst possible location.

That concentration of force changes everything about the member. Bending moments grow rapidly, shear demands near the supports become severe, and the supporting posts and footings below the beam ends must be checked for loads far larger than they would otherwise see. The transfer beam is not just one member. It is a system that includes the beam, its bearing connections, the posts, and the foundations beneath them.

Common Situations That Require a Transfer Beam

Several familiar project types almost always involve transfer conditions. Load-bearing wall removal is the most common residential case. When a wall supporting floor joists or roof framing is removed, a beam must span the opening and carry everything the wall once carried, including any point loads from posts above.

Rooms over garages create a similar condition. The garage door opening eliminates the wall that would naturally support the floor above, so a header or transfer beam spans the opening, often carrying bedroom floor loads of 40 psf live load plus dead load per ASCE 7-22 Table 4.3-1.

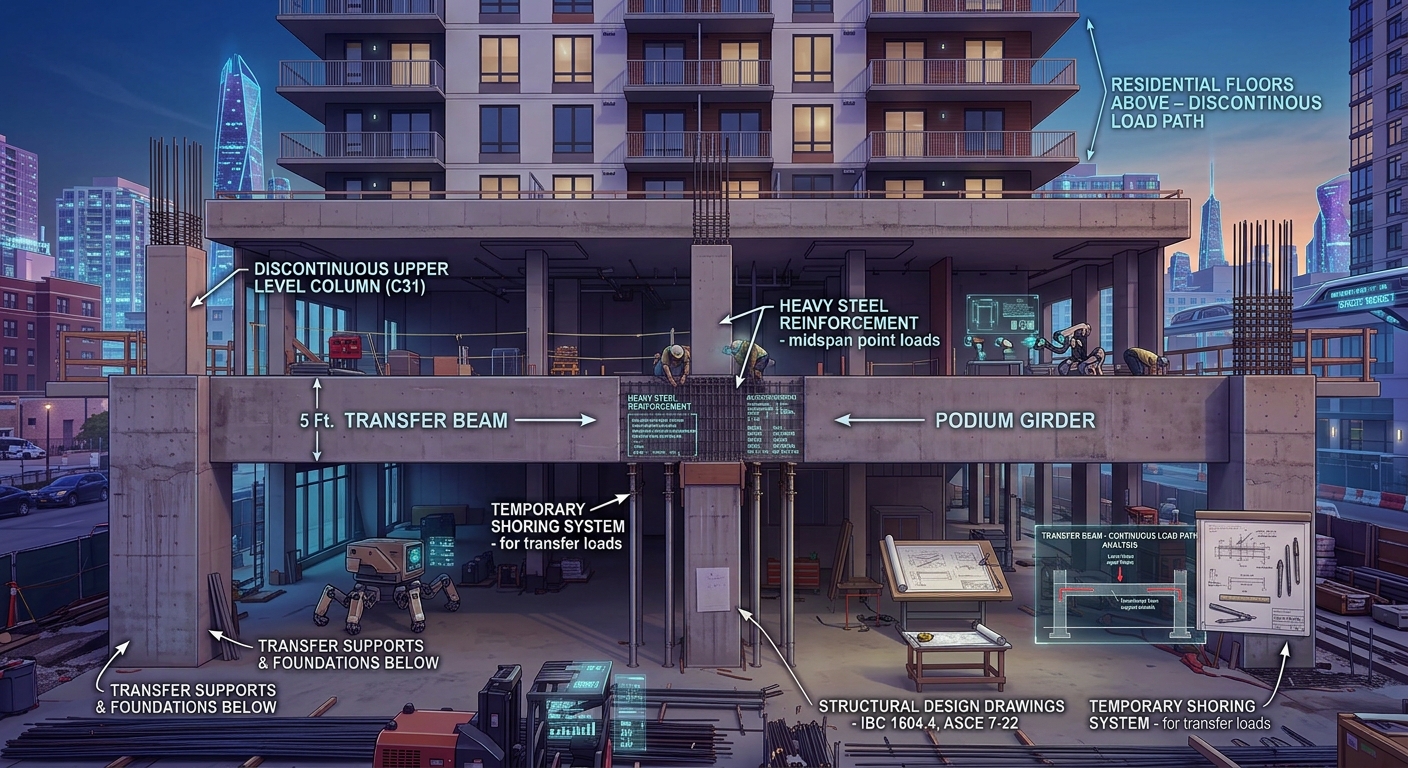

Podium construction is the large-scale version. Many multifamily buildings place five stories of wood framing over a concrete podium slab and beam system. The wood bearing walls above rarely align with the parking layout below, so the podium level transfers nearly the entire building weight.

Second-story additions frequently need transfers as well, because new upper-level walls seldom land directly on existing first-floor walls. Finally, open floor plan remodels that cluster loads onto a few interior posts often require a transfer beam to gather those loads and deliver them to points where foundations can be provided.

How Engineers Design a Transfer Beam

Design starts with load takedown. The engineer traces every floor, roof, and wall load tributary to the discontinued support, applying load combinations from ASCE 7-22 Section 2.3, such as 1.2D plus 1.6L for strength design. The resulting point load is placed on the beam along with any distributed floor loads it carries directly.

The beam itself is then sized for flexure, shear, and deflection. Steel transfer beams are designed under AISC 360, with particular attention to web local yielding and web crippling at the concentrated load and reactions, per Chapter J. Concrete transfer girders fall under ACI 318, and when the span-to-depth ratio is low they must be treated as deep beams under ACI 318-19 Section 9.9, often designed with strut and tie methods. Heavy timber and glulam options are checked under the NDS, where bearing perpendicular to grain at the supports frequently governs.

Deflection deserves special mention. A transfer beam supports walls and finishes above, so engineers typically limit live load deflection to L/360 and total load deflection to L/240 per IBC Table 1604.3, and often apply stricter limits when brittle finishes or masonry sit above. A beam that is strong enough but too flexible will crack drywall, rack door frames, and telegraph movement through every floor it supports.

Seismic and Code Implications of Discontinuous Supports

Transfer conditions carry consequences beyond gravity design. When a wall or frame that is part of the lateral force resisting system does not continue to the foundation, ASCE 7-22 Table 12.3-2 classifies the configuration as a vertical structural irregularity, specifically the in-plane discontinuity and discontinuous wall or frame conditions.

The code response is significant. ASCE 7-22 Section 12.3.3.3 requires the elements supporting discontinued walls or frames to be designed for seismic load effects including the overstrength factor, commonly 2.0 to 3.0 depending on the system. In plain terms, the transfer beam and its columns must resist earthquake-driven forces well beyond ordinary design levels, because a failure at this single point could bring down everything above it. There is no redundancy in a transfer element.

This is why a transfer beam in a California duplex or a Philippine mid-rise is not simply a bigger version of a floor beam. It is a critical, non-redundant element with amplified force demands, and building departments review these members closely during plan check.

What Transfer Beams Mean for Your Budget and Schedule

Transfer beams cost more than typical framing for predictable reasons. The steel sections are heavy, often W12 to W24 shapes or built-up members in residential work, and much larger in podium construction. Deep members compete with ceiling heights and mechanical ducts, so coordination with the architect matters early. New point loads usually require new pad footings or thickened foundations, which means excavation inside an existing building during remodels.

Installation also demands temporary shoring while the existing structure is supported and the new beam is placed. None of this should discourage a good design. It simply means the transfer condition should be identified at the concept stage, not discovered during construction. An engineer involved early can often shift a post location or align walls between floors, reducing or eliminating the transfer entirely, which is the cheapest transfer beam of all.

Conclusion

A transfer beam redirects loads around an interruption in the natural load path, and it does so with little margin for error. It carries concentrated forces, controls the fate of everything stacked above it, and triggers specific code requirements under the IBC, ASCE 7, AISC 360, and ACI 318, including amplified seismic forces where lateral systems are discontinued. If your project involves removing a bearing wall, building over a garage, or placing light framing over an open lower level, a transfer condition is likely part of the design. JMVC Consulting Structural Engineers designs transfer beams and complete load paths for residential and commercial projects across the United States and the United Kingdom. Reach out to us early in your planning, and we will help you get the structure right the first time.
