Do Shipping Container Homes Need Structural Engineering? What Every Builder Should Know

A shipping container looks like the perfect shortcut. It arrives as a sealed steel box, it stacks nine high on a cargo ship, and it survives ocean storms for decades. Many first-time builders assume that strength carries directly into a home. The reality is more nuanced. The moment you cut an opening for a window, remove a wall to join two containers, or set the box on a residential foundation, you change how the structure carries load. That single decision is where structural engineering becomes mandatory rather than optional.

This article explains why shipping container homes almost always require a licensed structural engineer, what the engineer actually checks, and which code provisions govern the design. Whether you are a homeowner planning a backyard studio or a developer pursuing a multi-container project, understanding these requirements early will save you from a failed plan check, a rejected permit, or a far more expensive problem after the steel is already in place.

A Container Is Strong Only in Its Original Form

An ISO shipping container earns its reputation honestly. Its strength comes from the corrugated steel side walls acting as deep shear panels, the corner castings transferring stacking loads, and the rigid end frames resisting racking. Together these elements form a self-bracing box. The catch is that this strength is highly directional. Containers are engineered to carry vertical load through the four corner posts and to resist racking through the corrugated walls. They are not designed to carry concentrated loads through the roof or to span openings cut into the sides.

When a container sits intact and stacks corner to corner, the load path is clean and the box performs as intended. A residential conversion rarely keeps that form. Builders cut doors and windows, join units side by side, and add roof loads the original design never anticipated. Each modification interrupts the corrugated diaphragm that gives the container its rigidity. The structure that survived an ocean crossing can become surprisingly flexible once it becomes a house.

Cutting Openings Changes the Load Path

Every opening removes part of the structural skin. Cut a large window into a side wall and you eliminate a section of the corrugated panel that was resisting lateral and racking forces. Cut a doorway through an end frame and you weaken the most rigid part of the box. The remaining steel must now carry forces that the deleted material used to share. Without reinforcement, the openings concentrate stress at their corners, where cracks and permanent deformation begin.

This is the heart of why container homes need structural engineering. An engineer designs reinforcement, typically welded steel tube or angle framing around each opening, sized to restore the interrupted load path. The same logic applies when two or more containers are joined and the shared walls are removed to create an open interior. Those removed walls were structural. Their function must be replaced with a designed beam or moment connection. The 2021 International Building Code, in Chapter 31 and through Appendix M which specifically addresses intermodal shipping containers, requires that these modifications be supported by engineering analysis when the original structural capacity is altered.

Foundations, Anchorage, and the Soil Below

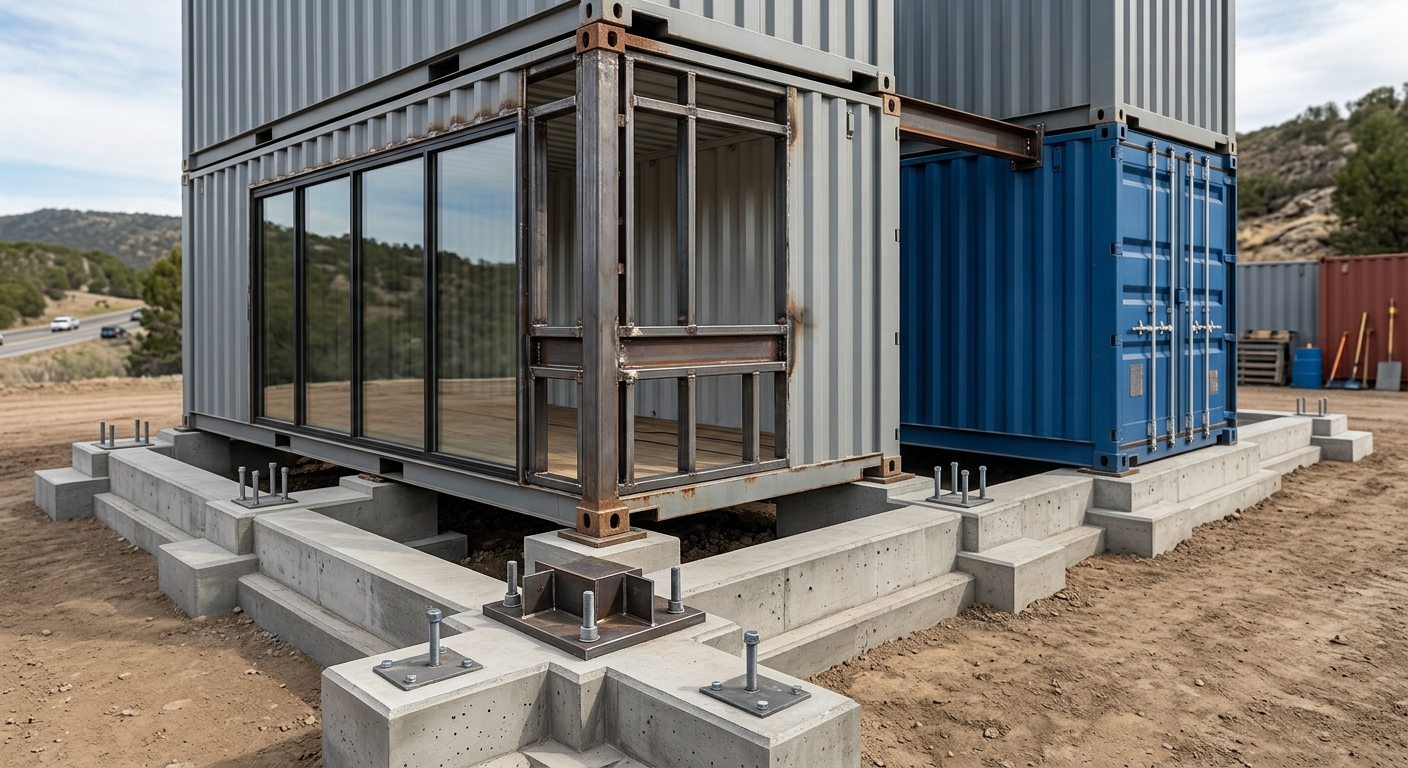

A container home is only as stable as what it sits on. The box must transfer its loads to a foundation that distributes them safely into the soil. Engineers commonly use concrete piers, a slab, or a perimeter footing, with the selection driven by soil bearing capacity, frost depth, and site grading. The corner castings are natural bearing points, but they deliver load in concentrated spots, so the foundation must be detailed to receive those reactions without settlement or cracking.

Anchorage is equally important and frequently overlooked. A lightweight steel box is vulnerable to wind uplift and to sliding during a seismic event. ASCE 7-22 governs the wind and seismic load determination, and the connections between the container and its foundation must be designed to resist those forces. In high wind regions, uplift can exceed the dead weight of the structure, which means the anchors, not gravity, hold the home down. A structural engineer calculates these demands and specifies the embedded anchors, base plates, and welds that keep the container fixed in place.

Wind, Snow, and Seismic Demands on Light Steel

Because a container home is light relative to a conventional wood or concrete house, the lateral load cases often govern the design. Wind pressure acts on the broad side walls, snow accumulates on flat or low-slope roofs, and seismic acceleration drives inertial forces through the steel frame. Each of these is a code-mandated load case under ASCE 7-22, and each must be combined according to the load combinations in the standard.

The steel design itself follows AISC 360, the Specification for Structural Steel Buildings, which governs the corten steel members, welded connections, and any added framing. Corten, the weathering steel used in containers, resists corrosion well but still requires attention at cut edges and welds where the protective patina is disturbed. Roof loads deserve particular care. A flat container roof was never meant to support snow drift, rooftop equipment, or a green roof system, so any such addition requires a specific check of the roof panel and supporting members. Skipping this analysis is one of the most common reasons container projects fail plan check.

Why the Permit Process Demands an Engineer

Most building departments treat shipping container homes as engineered structures from the outset. To issue a permit, the plan checker needs stamped structural calculations and drawings that demonstrate compliance with the governing code. These documents show the load path, the reinforcement at every opening, the foundation and anchorage design, and the lateral system that resists wind and seismic forces. Without them, the application stalls./p>

A licensed structural engineer provides the analysis, the details, and the professional stamp that the jurisdiction requires. This is not a formality. The engineer verifies that the modified box still behaves as a code-compliant building, not merely as a strong-looking box. Attempting to permit a container home without engineering usually leads to correction letters, redesign, and delay. Engaging an engineer at the concept stage, before any steel is cut, is faster and far less costly than retrofitting a structure that has already been built incorrectly.

Conclusion

Shipping containers are strong, but their strength is conditional. It depends on the corrugated walls and corner frames staying intact and on the box carrying load the way it was designed to. The moment you cut openings, join units, add roof loads, or set the structure on a foundation, you are creating a new building that must satisfy the International Building Code, ASCE 7, and AISC 360. That is exactly the work a structural engineer performs. If you are planning a container home and want a clear path through calculations, reinforcement detailing, and permit approval, JMVC Consulting Structural Engineers can help you design it correctly from the first cut. Reach out to discuss your project before construction begins.
